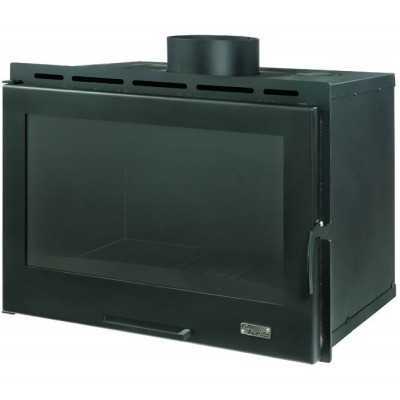

WOOD-BURNING FIREPLACE INSERT HIGH-THICK STEEL WOOD-BURNING FIREPLACE L-80 VENTILATED KW. 16

WOOD-BURNING FIREPLACE INSERT HIGH-THICK STEEL WOOD-BURNING FIREPLACE L-80 VENTILATED KW. 16

TECHNICAL FEATURES:

• ENTIRELY IN HIGH THICKNESS STEEL
• NOMINAL THERMAL POWER 16 KW
• PERFORMANCE 70%
• RATE RELEASED IN CARBON MONOXIDE FUMES 0.23%
• AVERAGE FUMES OUTLET TEMPERATURE 260 ° C.
• CONTINUOUS FOCUS
• DOUBLE COMBUSTION
• COMBUSTION AIR ADJUSTMENT ON THE FRONT
• REMOVABLE ASH DRAWER
• AUTONOMY APPROVED OF 8 HOURS
• PRODUCT APPROVED TO EUROPEAN STANDARD EN 13229
• Weight 90 kg

DIMENSIONS:

• WIDTH 800 MM
• HEIGHT 520 MM
• DEPTH with fan 560 MM
• FUMES OUTLET DIAMETER 194 MM
• 2 DUCTABLE OUTPUTS DIAMETER 100 MM

INTERNAL HEARTH DIMENSIONS:

• HEIGHT 300 MM
• WIDTH 690 MM
• USEFUL DEPTH 330 MM

GLASS SIZE:

• WIDTH 690 MM
• HEIGHT 390MM
• THICKNESS 4 MM
• CERAMIC GLASS FOR HIGH TEMPERATURES 800 ° C.

Forced ventilation

• Tangential fan with capacity 200 cubic meters per hour

2 year guarantee
