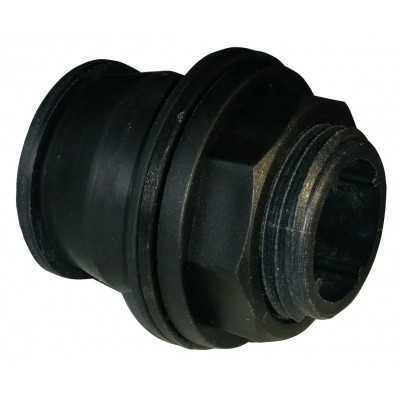

NYLON FITTING HOLES WITH QUICK COUPLING FOR POLL TANK. 1

NYLON FITTING WITH QUICK COUPLING FOR TANK POLL. 1

TECHNICAL FEATURES

• Easy to apply to tanks for various fields of use

DISTINGUISHING FEATURES

• Ergonomics: Excellent installation conditions
• direct from the outside of the tank ensuring
• occupational safety required by the directive
• 89/391 / EEC, especially when there are toxic fumes.
• Sealing safety: the seal design
• guarantees water tightness at 4 bar, on the wall
• flat or with a minimum radius of 50cm, too
• with applied stresses equal to 8Nm.

Versatility of use: it can be applied to tanks-containers for different fields of use.

• Water collection: tanks and systems

• Spraying: machines and equipment

• Nautical and Caravan

• Chemical toilets

Storage: containers for various liquids, including diesel and urea

• Automotive

• Industry cleaning

Assembly instructions

• A) Make a hole fig. 1 with a diameter equal to that of the fitting, as shown on the product label
• B) Sand with abrasive paper to remove any shavings and / or sharp edges, both inside and outside the hole
• C) Insert the fitting from the outside fig.2, without disassembling it, and position it as shown in fig.3
• D) Keeping the fitting in stop as in fig. 3, screw the nut until it is completely tightened.
• E) The wall must be sufficiently rigid
