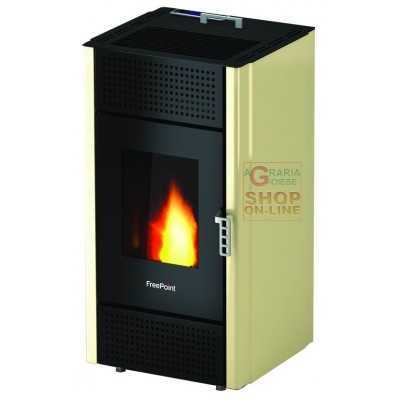

FREEPOINT-CADEL PELLET STOVE LEONORA KW. 7 IVORY

FREEPOINT-CADEL PELLET STOVE LEONORA KW. 7 IVORY

• FREEPOINT STOVE
• CADEL LEONORA
• A PELLETS STEEL PANELS
• HEATED VOLUME MC. 98-170
• ACC. PROGRAMMED WITH REMOTE CONTROL
• PIPE CONNECTION DIAMETER MM.80
• WEIGHT KG. 80
• DIMENSION CM. 57.5X48X94.5 (PXLXH)

TECHNICAL FEATURES

• Nominal power kW 7
• Reduced power kW 2,3
• Nominal useful power to the water kW -
• Reduced useful power to the water kW -
• Nominal efficiency% 88.5
• Reduced efficiency% 90
• Heatable volume (min-max) m3 55 - 168
• CO at 13% O2 nominal% 0.019
• CO at 13% O2 reduced 0.031%
• Dust content at 13% nominal O2 mg / Nm3 29
• Boiler capacity (H2O) l -
• Tank capacity 18 kg
• Fuel Pellet ø6
• Hourly consumption (min-max) kg / h 0.50 - 1.66
• Autonomy (min-max) h 36 - 10.8
• Electric absorption in ignition (max) W 360
• Electrical absorption in operation (max) W 60
• Power supply voltage and frequency V - Hz 230 - 50
• Flue depression Pa 12
• Smoke outlet diameter mm 80
• Combustion air inlet diameter 40 mm
• Smoke mass (min-max) g / sec 3.4 - 6.41
• Flue outlet temperature (max) ° C 180
• Net weight kg 63
