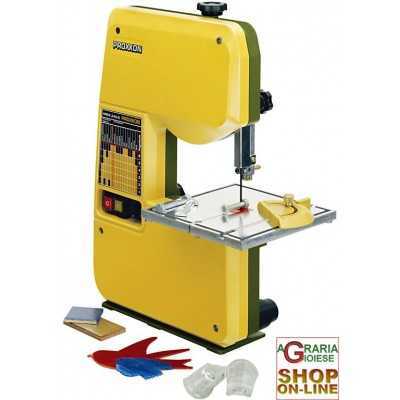

PROXXON 27172 MICROSAW BANDS FOR BENCH MBS 240 / E 220V

PROXXON 27172 MICROSAW BANDS FOR BENCH MBS 240 / E 220V

BAND MICROSAW

Sturdy structure in die-cast aluminum with ribs of

reinforcement (not in tube or stamped sheet).

Mod. MBS 240 / E Art. 27172

casing in die-cast aluminum. Rectified aluminum worktop tiltable up to 45 °.

Aluminum pulleys on double ball bearings. Stable worktop with ground surface, groove for protractor guide (swiveling up to 450 for miter cuts). Height-adjustable belt guide, triple belt guide bearings adjustable for different blade widths.

High-quality, quiet 220-volt motor (a real marathon runner) transmission via Optibelt toothed belt. Electronically adjustable belt speed for unusually clean cuts that require no further finishing!

A clear table indicates the speed adjustment parameters for all materials. The tape (5.0 x 0.4 mm) is ideal for curved cuts with a narrow radius.

Technical data:

220 - 240 Volt. Belt speed adjustment (with Feed-Back effect) from 180 to 330 m / min.

Outreach 150 mm.

Maximum cutting height 80 mm.

Worktop 200 x 200 mm (tiltable up to 45 °).

Supplied with a blade 1065 x S, O x OA mm (14 teeth).

Optional: cooling system
