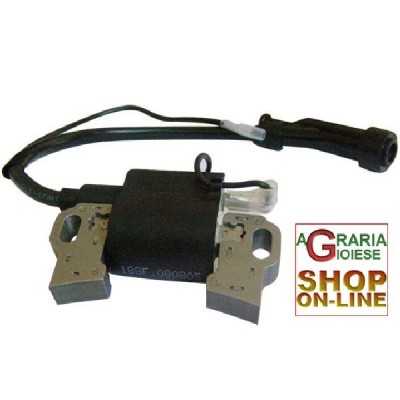

SPARE COIL FOR GENERATOR 5000
TECHNICAL FEATURES:
173F-188F spark plug
1. Operating temperature range: (-30-105 º C)
2. Storage temperature range: (-40-120 º C)
3. Operating speed R.: 250-4200rpm
4. Flywheel magnetic field strength: 1500-1900GS
5. Test term: Situation temperature 20º C, the distance between flywheel is (0.4 ± 0.1) mm and 3 pins is 6mm
6. Minutes Continuous speed ≤250rpm of Ingintion R.
7. Minutes Opening Voltage ≥12KV / 250rpm; ≥16 / KV (1000-4200) RPM
8. Advanced ignition angle: (22-25 °) / (250-4200) RPM
9. High and low temperature shoke: Between (-29-125 º C), each degree for one hour and after 25 cycles, the original function keeps above 90%
10. Endurance performance: Temperature 85º C and R. accelerate 3600rpm, after sontinue 150 hours running, the original performance keeps above 90%
11. Open circuit performance: Temperature 85º C and R. accelerate 3600rpm, after continue 150 hours, secondary open circuit keeps above 90% original one.
12. Shock performance: 4 hours of shock on the tridimensional sense with 98m / (second * second) resistance, the frequency sweep range is 50-500Hz, and after 15 minutes, the original performance keeps above 90%.
