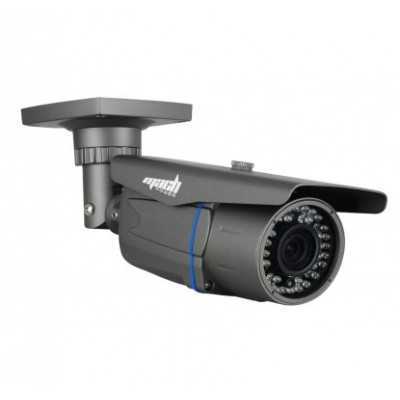

MACH POWER MULTIFOCAL CAMERA FOR OUTDOOR 4-9 MM. 700TVL LED 42

MACH POWER MULTIFOCAL CAMERA FOR OUTDOOR 4-9 MM. 700TVL LED 42

Outdoor Night & Day video surveillance camera with high definition color CCD / CMOS sensor with 4-9 mm lens and 24 LEDs completely enamelled in an elegant gray. It covers a distance of 40 meters. With the 24 infrared LEDs we will have a clear and quality night vision. Automatic compensation function of the backlight component, automatic white adjustment.

Model: VS-IBVC700E

Sensor: 1/3 ”SONY - ICX673BK - Effio-E CCD

Resolution: 700TV lines of Illum. Effio, ATR, OSD, NR

Pixel: 976 × 494

Lens: 4-9mm with Manual Zoom

Type: IR ¢ 5 x 42 pcs

IR range: 40 meters

IR activation: Automatic control via CDS

Minimum Illumination: 0.001 Lux / F2.0

S / N ratio ≥65dB (AGC OFF)

Gamma correction 0.45

Video output Composite signal (1.0Vp-p, 75Ω)

PAl / NTSC TV system

PAL / NTSC PAL 625 Lines, 50 Field / Sec scanning system; NTSC 525 Lines, 60 Field / Sec

Electronic shutter PAL / NTSC PAL 1 / 50-1 / 100,000Sec; NTSC 1 / 60-1 / 100,000Sec

Audio: No

Operating temperature: -10 ° C ~ + 50 ° C RH95% Max

AWB (Automatic White Balance): Automatic

WDR (Wide dynamic range): Yes (Digital)

OSD (On Screen Display): Yes

BLC (Back Light Compensation): No

Privacy zone: Yes

Motion Detection: Yes

Degree of protection: IP66

Power supply: DC 12V 400mA

Material: Metal

Dimensions: 275 x 97 x 82 mm

Weight: 1.3 Kg
