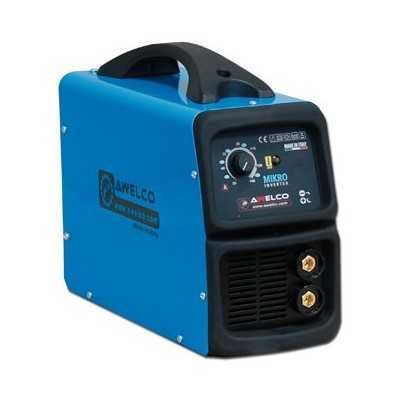

AWELCO MIKRO 184 INVERTER WELDING MACHINE WITH 160Ah WELDING KIT

AWELCO MIKRO 184 INVERTER WELDING MACHINE WITH 160Ah WELDING KIT

• The Awelco Mikro 184 welding machine suitable for electrode welding, commonly called MMA, makes use of an inverter current generator that reproduces a low voltage current and many amps which are used to form an electric arc, this through its heat. it melts the metal of the pieces to be welded and the filler material consisting of a coated electrode. To carry out a perfect welding, it is necessary to set the right amperage, which varies according to the diameter of the electrode and the thickness to be welded. Lightweight, compact and reliable. Suitable for rutile, basic, stainless steel and cast iron electrodes
• Mains voltage 230V
• Frequency 50/60 Hz
• Absorbed power 60% 4.2 KVA
• No-load voltage Peak 100 V
• Welding current 5-160 A
• Service factor 30% 160 A
• Electrode min Ø1.6
• Electrode max Ø4
• Insulation class H
• IP21 protection degree
• Box volume m3 0.039
• Dimensions 485x245x330 mm
• Weight 7.2 Kg
• Bar code 8004386601846
• Ordering code 60184
