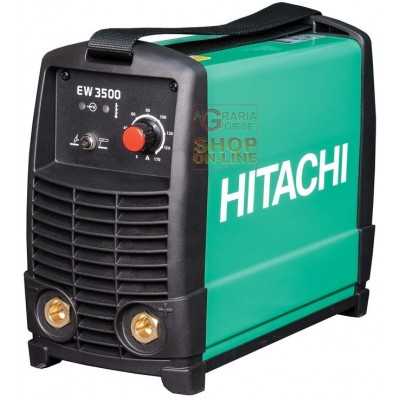

HITACHI INVERTER WELDING EW3500 160 A

HITACHI INVERTER WELDING EW3500 160 A

TECHNICAL FEATURES

• EW3500
• 160 A inverter welder

Features

• The EW3500 model is a portable inverter generator that allows MMA (Manual Metal Arc) or TIG (Tungste Inert Gas) welding by STICK / TIG (lift arc). Easy to use, it has excellent welding characteristics with all types of commercial electrodes (rutile, basic, stainless steel). Equipped with overvoltage, overtemperature and electrode anti-sticking control, it is possible to power it with generators and long connection lines.

Applications

• Thanks to its small size and low weight, it is easy to use both in small artisan workshops and carpentry shops and in building construction sites for the welding of metal meshes and structures in place, sanitary metal pipes and supports for the same.

Specifications

• Supply voltage 220 ~ 240V
• Frequency 50 ~ 60Hz
• Maximum input current 15 A
• Output current range 5 ~ 160 A
• No-load voltage 60 V
• Duty cycle 30% 160 A
• Duty cycle 60% 115 A
• Duty cycle 100% 90 A
• Degree of protection IP 22
• Electrode diameter Ø 1.6 ~ 4 mm
• Length 330 mm
• Width 140 mm
• Height 245 mm
• Weight 5.4 kg
• Code HTM93154516
• EAN number 4966376214648
• Accessories supplied electrode holder with 3 m cable - 2 m clamp / ground cable - carrying case
