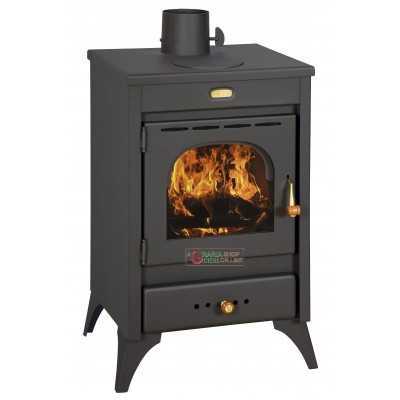

WOOD AND COAL STOVE IN HIGH THICKNESS STEEL MODEL KIR9 / 12KW

WOOD AND COAL STOVE IN HIGH THICKNESS STEEL MODEL KIR9 / 12KW

The kir stove model represents a wood (and coal) stove produced in Europe and compliant with current regulations. the structure is made of high thickness steel, entirely painted with high quality paints, resistant to high temperatures. The ceramic glass is produced by Schott and withstands over 1000 °. The primary air is controlled through the wooden knob placed on the ash drawer. The combustion chamber consists of a cast iron base plate (which can be removed for cleaning) and a perimeter surface in reftlattarto brick (3cm thick). On the steel top there is a circular cast iron plate that allows cooking directly like a wood stove.

Technical features:

Nominal Power 9kw

Maximum power 12kw

External dimensions (cm.) 46x38x75

Hearth dimensions (cm) 37x30x35

U. Smoke outlet (diameter, cm) 12

Primary air control YES

Secondary air control NO

Internal firebox in cast iron and refractory

Matt black color

Manual draft control valve YES

Minimum draft required 12Pa

Energy efficiency> 70%

Nominal heating capacity 220mc

Weight 71kg
